Dolcevita Gold

The hybrid skimmer pool

  • Model Dolcevita Gold
  • Designer Luigi Spedini

A structure for every installation.

The design of the Gold version of Dolcevita gives you great freedom in the installation of your pool, which can be above-ground, partially or fully underground, ensuring that it can be perfectly integrated into the morphology of the land of your home.

  • Model Dolcevita Gold
  • Family Pool Design
  • Installation In-ground - Partially in-ground – Above-ground
  • Product Type Piscina a skimmer
  • Sizes from 3x5 to 4x9 (water size)
  • Available Heights 120 cm (water size)
  • Structure Stainless steel and hot-dip galvanised steel protected with epoxy powders (ZSV-TEC technology). Stainless steel hardware with anti-grip nuts
  • Finishes Old Stone coping
  • Pool Liner Polyesters fibers and high strength polymers membrane
  • Liner Colours White, sand
  • Installation Sand filtration systems
  • Equipment Tank, old stone coping, sand filtration system, Led light(s), vacuum cleaner, too-full system, stainless steel ladder
  • Option Winter cover, summer cover, counter-current swimming kit, 7 jets whirlpool corner
  • Warranty 5 Years (structure and liner) - 2 Years (other parts and accessories)
MOD. WATER SIZE (m) OVERALL SIZE (m) WATER HEIGHT (m) FULL HEIGHT (m) VOLUME (mc)
35 3 x 5 3,7 x 5,7 1,2 1,3 18
36 3 x 6 3,7 x 6,7 1,2 1,3 21,6
37 3 x 7 3,7 x 7,7 1,2 1,3 25,2
48 4 x 8 4,7 x 8,7 1,2 1,3 38,4
49 4 x 9 4,7 x 9,7 1,2 1,3 43,2

In-ground / Partially in-ground

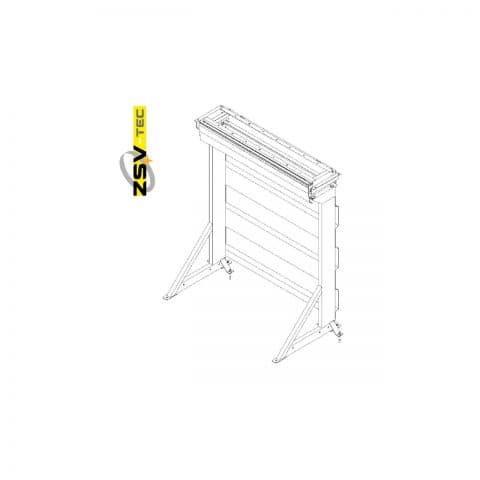

The structure of Dolcevita Gold is designed to be assembled on a concrete surface with a minimum load capacity of 1300 kg/sqm. The trellis uprights and stringers are made of hot-dip galvanised steel and oven-baked epoxy powder coated (ZSV-TEC technology). The ground fixing plates are made of stainless steel. The adjusting elements and bolts are made of stainless steel with anti-grip nuts. The backfill panels are made of hot-dip galvanised and epoxy powder coated steel and the additional anchor bolts are made of stainless steel.
In-ground / Partially in-ground The structure of Dolcevita Gold is designed to be assembled on a concrete surface with a minimum load capacity of 1300 kg/sqm. The trellis uprights and stringers are made of hot-dip galvanised steel and oven-baked epoxy powder coated (ZSV-TEC technology). The ground fixing plates are made of stainless steel. The adjusting elements and bolts are made of stainless steel with anti-grip nuts. The backfill panels are made of hot-dip galvanised and epoxy powder coated steel and the additional anchor bolts are made of stainless steel.
In-ground section The drawing shows the preparation of the ground for the installation of Dolcevita Gold in the classic in-ground version. Only backfill and/or excavated material is used for backfilling, without the need for inert material and expensive masonry consolidation around the pool structure. The Gold self-supporting structure allows the pool to be built without the need for masonry work, which in this case is limited to the construction of the reinforced concrete base.
Partially In-ground section The drawing shows the preparation of the ground for the installation of a partially in-ground Dolcevita Gold, which can be chosen to create a different aesthetic impact and/or to overcome particular limitations. For the partial re-interment, only backfill and/or excavated material is used, without the need for inert material and expensive masonry consolidation works. The self-supporting Gold structure allows the construction of the swimming pool without heavy masonry work, which in this case is limited to the construction of the concrete base.
Above-ground The Dolcevita Gold structure, also in the completely above-ground version, is designed to be mounted on a concrete or smooth floor with a minimum load-bearing capacity of 1300 kg/sqm. The trellis uprights and side members are made of hot-dip galvanised steel and oven-baked epoxy powder coated (ZSV-TEC technology). The ground fixing plates are made of stainless steel. The adjustment elements and bolts are made of stainless steel with anti-grip nuts.

Pool liner – White colour

Dolcevita's prefabricated pool liners are made of the exclusive PVC-coated Trevira fabric. This highly resistant material is subsequently treated against UV rays using special additives that limit the ageing of the material as much as possible. The Dolcevita cover has a tensile strength of 430 kg/5 cm according to DIN 53354 rule.
Pool liner – White colour Dolcevita's prefabricated pool liners are made of the exclusive PVC-coated Trevira fabric. This highly resistant material is subsequently treated against UV rays using special additives that limit the ageing of the material as much as possible. The Dolcevita cover has a tensile strength of 430 kg/5 cm according to DIN 53354 rule.
Pool liner – Sand colour Dolcevita's prefabricated pool liners are made of the exclusive PVC-coated Trevira fabric. This highly resistant material is subsequently treated against UV rays using special additives that limit the ageing of the material as much as possible. The Dolcevita cover has a tensile strength of 430 kg/5 cm according to DIN 53354 rule.
Old Stone coping - Grey colour Old Stone pool copings are moulded to faithfully reproduce the characteristics of natural stone, with its texture and nuances. This pool edging is approximately 4 cm thick and is frost-proof. It also undergoes an anti-stain surface treatment.
Cantabric sand filtration systems by AstalPool The Dolcevita line is fitted as standard with Cantabric filtration made by Fluidra Group. Depending on the size and number of skimmers in the pool, three models are available: 6, 10 and 15 mc/h. An Highly professional, high-performance and reliable systems.
Overflow skimmer The exclusive 360-degree overflow skimmer by Laghetto allows the best possible cleaning of the pool water surface. The circulation system is then equipped with pipes with one and a half inch screw fittings, feed-throughs and ABS shut-off valves.
White Led spotlight Every Dolcevita pool kit, regardless of its finish, comes standard with one or two white Led spotlights on the liner. These spotlights combine unparalleled light output with very low power consumption (less than 8 W) and unrivalled durability.
Ladder for the in-ground version The Dolcevita Gold in-ground pools have a dedicated ladder in AISI 316 stainless steel attached directly to the metal structure of the pool, without a balcony. The ladder is directly integrated into the coping of the pool, like the Old Stone version, with an attachment to the upper part of the structure to make it absolutely stable.
Ladder for the above-ground version Above-ground Dolcevita models have a dedicated ladder in AISI 316 stainless steel attached directly to the metal structure of the pool, without a balcony, directly integrated into the Old Stone coping, with external steps and attachment on the wall, to be absolutely stable.
Vacuum cleaner kit As with all Laghetto pool kits, the Dolcevita line includes a practical manual vacuum cleaner system for perfect cleaning of the pool floor, to be applied to the skimmer. It consists of a suction head, modular aluminium handles and PVC hose.
Structures
Gallery

The design of the Gold version of Dolcevita gives you great freedom in the installation of your pool, which can be above-ground, partially or fully underground, ensuring that it can be perfectly integrated into the morphology of the land of your home.
