Bluespring - Piscine Laghetto

Bluespring

The queen of swimming pools

  • Model Bluespring
  • Designer Luigi Spedini

When the sides of the overflow blend with the sky and with the surrounding atmosphere, the fulfillment of the perfect pool is realized , the time when the pool  disappears and binds to the infinite lines.

Bluespring is designed to give space to the architectural interventions to harness the magic of the different types of overflow available. The structure has been designed to maintain the integrity of the performances over the years, getting its point of excellence in the reliability using. The best technology at the service of demanding customers who believe in the beauty of their own water space.

  • Model Bluespring
  • Family Pool Design
  • Installation In-ground - Partially in-ground – Above-ground
  • Product Type Overflow swimming pool
  • Uses Residential (private) or Commercial (pubblic)
  • Sizes from 3x5 to 12,5x25 (water size – residential use)
  • Heights 130, 152 cm (water height)
  • Structure Zinc Magnesium with epoxy coating (ZMSV-TEC technology). Stainless steel hardware with anti-grip nuts
  • Finishes Old Stone, Classic Stone copings, other solutions on demand
  • Coatings Wide choice of reinforced PVC membranes
  • Installation Filtration, lighting, dosers, accessories branded AstralPool
  • Ladders Stainless steel, concrete
  • Options Winter cover, summer cover, counter-current swimming kit, 7 jets whirlpool corner, infinity overflow, heating system
  • Warranty 20 Years degressive (structure) - 2 Years (other parts and accessories)

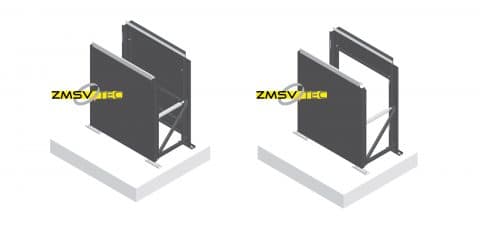

ZMSV-TEC/1 Structure

The Bluespring structure is made of hot-dip galvanized and passivated sheet metal, with a low-carbon Z275 cover, according to the specifications dictated by the UNI EN ISO 10327 standard, treated with the exclusive Laghetto ZSV-TEC protective cover. Every single galvanized sheet or trellis that makes up the structure are subjected to an epoxy painting in the oven to guarantee a superior finish quality and a long life, both in underground and above ground systems.
ZMSV-TEC/1 Structure The Bluespring structure is made of hot-dip galvanized and passivated sheet metal, with a low-carbon Z275 cover, according to the specifications dictated by the UNI EN ISO 10327 standard, treated with the exclusive Laghetto ZSV-TEC protective cover. Every single galvanized sheet or trellis that makes up the structure are subjected to an epoxy painting in the oven to guarantee a superior finish quality and a long life, both in underground and above ground systems.
ZMSV-TEC/2 Structure The Bluespring ZMSV-TEC structure uses a full external earth panel if it is used for a classic in-ground pool, or is equipped with a shortened external panel if it is installed in above-ground situations. Bluespring has two standard structural heights for the pool panel: 130 and 152 centimetres. Higher or variable heights are achieved directly by varying the design of the bottom slab.
In-ground structure In the technical design alongside we can see a classic installation totally inground of the pool Bluespring . As can be seen from the drawing, for the filling around the structure it is used only the landfill or what was result of the excavation, with no need to buy and to use inert materials or realize expensive works of consolidation around the pool structure in masonry.
Partially In-ground structure If we want to create a structure partially in ground, for a different visual impact or to overcome certain limitations of the subsoil, the pool Bluespring Laghetto is perfectly suited to this use. The Bluespring self-supporting structure allows the realization of the pool without heavy build masonry works, which in this case are reduced only to the realization of the reinforced concrete base.
Above-ground structure Thanks to its double wall structure and its astonishing stability, the pool Laghetto Bluespring can be installed entirely above ground, without any additional masonry. Its rigidity is so high that a possible external finish, for example with strips massive wood, may be anchored and supported directly by the structure of the pool.

Coating

The coating is composed of two sheets of PVC welded through of heat calendering process. The internal polyester armor reinforce the product. The PVC is treated with a special transparent coating that protects it from aging and keeps the original color vivid. Does not slip and does not deform in any way, it is treated against UV rays, algae and fungi. The membrane adapts to any shape and ensures the stability and compactness to the structures on which it is applied, making them as a single body. After laying the membrane, directly on site, we proceed to the further isolation of the joints through liquid PVC coating of the same color, making it even more stable.
Coating The coating is composed of two sheets of PVC welded through of heat calendering process. The internal polyester armor reinforce the product. The PVC is treated with a special transparent coating that protects it from aging and keeps the original color vivid. Does not slip and does not deform in any way, it is treated against UV rays, algae and fungi. The membrane adapts to any shape and ensures the stability and compactness to the structures on which it is applied, making them as a single body. After laying the membrane, directly on site, we proceed to the further isolation of the joints through liquid PVC coating of the same color, making it even more stable.
Lighting A must-have accessory both for the highly scenic effect it creates and for making the best use of your pool on sweaty summer nights. As with all its equipment and accessories, Bluespring chooses products exclusively from the Fluidra Group, under the AstralPool and Zodiac brands.
Old Stone Borders Old Stone are made to faithfully reproduce the characteristics of natural stone, with its texture and its nuances. This pool top of approximately 4 cm thick, is antifreeze and is reinforced with a steel mesh that makes it a highly durable product; it also undergoes an anti stain surface treatment.
Classic Stone The Classic Stone edges are made exclusively of inert porphyry and natural quartz selected, washed and bound together by silica sand and high-strength cement. The dosage of the inert is such as to recreate both the aesthetic and the resistance entirely similar to natural porphyry. This stone, the thickness of 4 cm approximately it is anti-slip and anti-freeze and is reinforced with a stainless steel mesh that makes it a highly durable product.

Corner Staircase

Inserted within the shape of the pool, in one or more corners of the pool, it is made of reinforced concrete and then covered with a membrane. ‘It’s the ideal structural base for enjoying a Jacuzzi area.
Corner Staircase Inserted within the shape of the pool, in one or more corners of the pool, it is made of reinforced concrete and then covered with a membrane. ‘It’s the ideal structural base for enjoying a Jacuzzi area.
Double Corner Staircase Placed within the width of the pool at both ends, they are made of reinforced concrete and then covered with a membrane. They facilitate the entry and exit from the pool and are an ideal structural base for enjoying a Jacuzzi area.
Staircase With Integrated Beach Inserted to the entire width, of one side of the pool as a real entrance stairway, this kind of staircase is made of reinforced concrete and then covered with a membrane of the same color chosen for the pool. The first elongated step allows to have a part of it used as a beach, a real entrance relaxation area in the pool.
Staircase With Integrated Whirpool Placed within the width of the pool at both ends, they are made of reinforced concrete and then covered with a membrane. It’s the ideal structural base for enjoying a relaxing Jacuzzi area.
Full Width Staircase Inserted to the entire width, of one side of the pool as a real entrance stairway, this kind of staircase is made of reinforced concrete and then covered with a membrane of the same color chosen for the pool.
External Staircase Attached tone side of the pool this kind of staircase is made of reinforced concrete and then covered with a membrane of the same color chosen for the pool.
Stainless Steel Ladder The stainless steel ladders are the most classic and convenient way to access to the pool. Equipped with anti-slip steps, they can also be combined with roman stairs, especially in large pools.

Infinity Overflow

Transforms one or more sides of your pool Bluespring into something totally unique. The overflow effect of the pool becomes infinite, so the water appears to merge with the horizon.
Infinity Overflow Transforms one or more sides of your pool Bluespring into something totally unique. The overflow effect of the pool becomes infinite, so the water appears to merge with the horizon.
Diving Pit For those who want to enjoy a deeper zone in Bluespring pool the bottom of the pool can be realized with different heights, changes in levels or diving pits, for use with or without the presence of a trampoline.
Roller Shutter Cover A product suited to reduce the evaporation of water, facilitate maintaining the temperature reached in the pool and close automatically and quickly the pool when not in use.
Winter Cover They are made of floating polythene Rip Stopper fabric membrane coated with green / black polythene treated super anti-UV. Patented by Laghetto they are equipped with anti-rolling water ballast and practical hooks for anchoring to the ground.
Fountain - Water Game You can surround and finish your Bluespring with fountains and various water games, such as a stainless blade cascade. Choose from a wide range of fountains and water features, to give more movement to your pool and increase relaxation and fun.
Fountain A simple yet scenographic accessory, a water jet housed by a low stone wall at the ends of the pool which add to the whole elements of movement, of pleasantness, freshness, increasing the relaxation and enjoyment of those using the pool.
Springboard A must-have accessory to take advantage of the pit diving of the pool for the amusement of children and adults. The trampoline is made of elastic polyester or fiberglass. Is attached directly to the paving that surrounds the pool.
Partition Wall It is made on site in reinforced concrete after the realization of the structure and of the bottom slab and is then completed with the same covering membrane used for the pool. The 30 cm wide wall partition has the function of divider between the part intended for children and the one for adults.
Stream Swimming System The swimming against current system of Piscine Laghetto has 2 motors and 2 large jets, electrical control panel and a wired remote control.

Bluespring for sport

The unique Bluespring technology with its compensation channel and self-supporting structure is also perfectly suited to the construction of public swimming pools, for free swimming and competitions, pool sports and aquatic courses in gyms and sports centres.
Bluespring for sport The unique Bluespring technology with its compensation channel and self-supporting structure is also perfectly suited to the construction of public swimming pools, for free swimming and competitions, pool sports and aquatic courses in gyms and sports centres.
Bluespring for sport The unique Bluespring technology with its compensation channel and self-supporting structure is also perfectly suited to the construction of public swimming pools, for free swimming and competitions, pool sports and aquatic courses in gyms and sports centres.
Bluespring for sport The unique Bluespring technology with its compensation channel and self-supporting structure is also perfectly suited to the construction of public swimming pools, for free swimming and competitions, pool sports and aquatic courses in gyms and sports centres.
Bluespring for sport The unique Bluespring technology with its compensation channel and self-supporting structure is also perfectly suited to the construction of public swimming pools, for free swimming and competitions, pool sports and aquatic courses in gyms and sports centres.
Bluespring for sport The unique Bluespring technology with its compensation channel and self-supporting structure is also perfectly suited to the construction of public swimming pools, for free swimming and competitions, pool sports and aquatic courses in gyms and sports centres.
Installation
Parts
Ladders
Accessories
Commercial Use

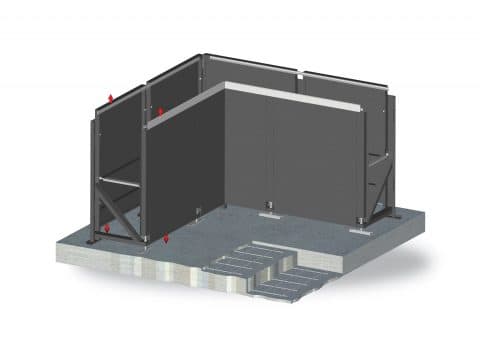

Bluespring is constructed with a modular structure that allows you to create pools of countless sizes and shapes to suit your needs. Its self-supporting structure does not require a retaining wall or soil fills with inert materials such as sand or gravel, thereby limiting to the minimum masonry works.

Bluespring only needs a concrete base slab, while the surrounding ground is directly supported by the structure itself. This allows us to be able to assemble it also completely above ground or partially in-ground, without making structural changes or having to incur into expensive additional masonry.

The Laghetto Bluespring modular structure allows the construction of elegant and personal swimming pools, with geometric shapes and more, with exceptional characteristics of quality and durability. Under construction, but also later, you can access to the interspace formed between the panels and add all kinds of accessories, with a simple wall flange and lining. In this way accessories as Led lights, whirlpools, stream swimming systems and related pumps, pipes and devices can always be easily accessible or added . A unique and inimitable characteristic of the Laghetto project that allows you to deal with the construction of your pool even in different stages without problems.

Sistema di Compensazione Bluespring

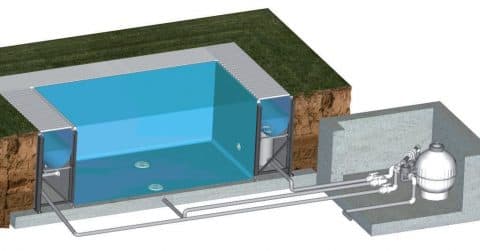

In traditional overflow pools, so that they can work properly, you need to create an external water collection tank to the pool called the compensation tank, that take care of keeping constant the level of water, collecting the excess and returning it when needed. This container needs to be covered on top and can be accessed only by qualified technical personnel for routine and extraordinary maintenance operations. Normally this tank is made completely underground in reinforced concrete.

With Bluespring all this is not necessary, thanks to the use of big and capacious overflow duct, which allows to avoid the construction of the external compensation tank, with consequent and evident of space and cost savings.

La piscina più pulita

The overflow provides the best filtration possible, so as to have become a mandatory feature for all public, commercial pools. In the overflow system the water overflows perfectly from the upper edge of the pool in a homogeneous way throughout its entire perimeter, thus keeping always clean the surface of the water, the first point of collection of outer dirt. The Laghetto Bluespring perimetric overflow system, with its perfect overflow on the whole perimeter of the pool, ensures that any floating particle accomplishes the shortest possible route to reach the filtration system, regardless of the distance from the compensation channel and the direction of wind.

La purezza della forma

In the Bluespring overflow system the water that overflows from the edge of the pool it is collected in a large channel placed under the pavement perimeter; in doing so the water is at the same level of the edge of the stone and seems to disappear inside it, creating a striking visual effect. The overflow system cancels the feeling of emptiness caused by the difference in level between the edge and the water, typical in pools with wall  mounted skimmer, thus giving a feeling of unique breadth and ensuring our pool greater harmony with the surrounding environment. The structure consist of two completely independent parallel adjustable walls (in height and in alignment) even at after years, between which is obtained the overflow duct which also performs the function of compensation tank. This type construction offers in addition to the considerable aesthetic result also numerous and considerable advantages..

Facile regolazione del livello di tracimazione

This feature is essential for the proper functioning of the infinity pools. It can in fact happen that over time, due to a settling of the ground or of geological events, the reinforced concrete slab which rests on our pool also suffers a partial settling of its original level, thereby compromising the proper functioning of the pool . In traditional structures this event would be a big deal, just be solved with massive and costly structural interventions. Bluespring lake thanks to its self-supporting structure and adjustable over time, it can easily retrieve the correct alignment of the overflow, simply by acting on the appropriate adjustments, without breaking anything, even with the pool full of water, with an obvious saving of time and costs . This feature, combined with the strength and solidity of its structure, make Bluespring a unique pool of its kind and absolutely inimitable.

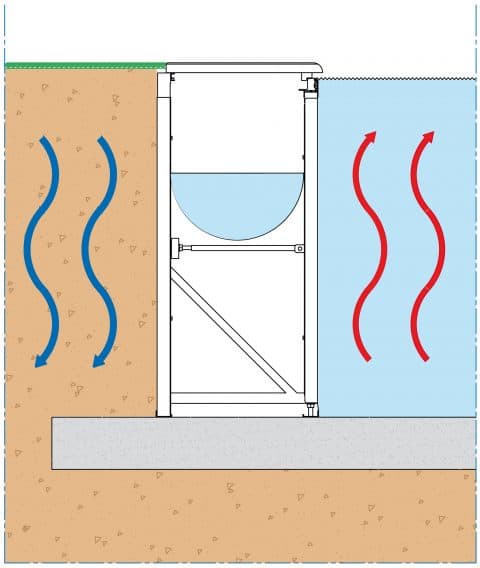

Isolamento termico ed ispezionabilità

The structural space between the inner and outer wall, creates a corridor about 60 cm wide that ensures a perfect thermal exchange between the mass of water and the surrounding soil. This internal air chamber to the pool structure, in addition to decreasing the dispersion of the water heat, eliminates the formation of condensation between the metal and the liner, greatly extending the life of of the pool panel.

The air gap is wide enough to allow the technician to be able to inspect, adjust and make any kind of intervention, without ever having to break anything and greatly reducing maintenance costs over time. The same thing applies to every future embellishment, in fact, with Bluespring is possible to add all the desired accessory, for example a hydromassage area, or a series of LED lights, without the need to make heavy masonry works.

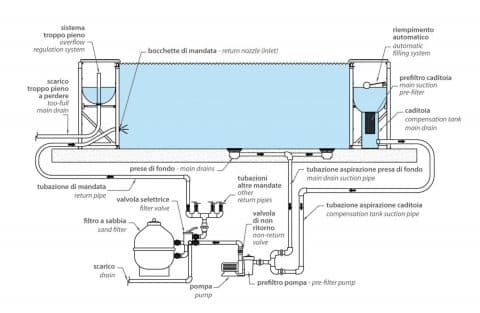

Impianto di filtrazione

The Piscine Laghetto filtration systems are designed to ensure the perfect water quality  in the pool over time, using only the best components on the market. The main channel drain supplied with every Bluespring pool, completely made of stainless steel, serves to draw the water to be filtered from the overflow duct and retaining coarse dirt through an included stainless steel prefilter . A full flange is provided for attachment to the overflow duct. The pipes are assembled on site using rods of rigid PVC pipe (PN10) or flex hose ise necessary. They are provided on ABS fittings. The inlets installed on the wall, are made of ABS plastic and equipped with swiveling ball. A too-full drain is supplied with the pool, with the function of discharging outside the excess water of the channel, avoiding useless waste around the swimming pool. The AUTOMATIC FILLING

It has a function a safety device for the pool keeping the water level constant an avoiding a possible failure of the pump, due to a dry running.

Gallery

When the sides of the overflow blend with the sky and with the surrounding atmosphere, the fulfillment of the perfect pool is realized , the time when the pool  disappears and binds to the infinite lines.
