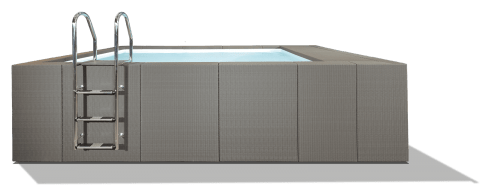

Dolcevita Diva LTI

ELEGANCE & TECHNOLOGY
  • DESIGN Minimalist
  • MODELLO Dolcevita Diva LTI
  • DESIGNER Luigi Spedini

Dolcevita is, in the above-ground pool market, the product that in recent years has best met the tastes and expectations of the most demanding customers, renewing the world of above-ground pools. This has been possibile thanks to the solid Laghetto technology – on the market for almost 50 years – and its elegant and innovative design.
A product that is at the same time easy to assemble, functional, and of undoubted aesthetic impact.
It can be placed in any type of context, even where the classic inground pool can’t be installed.
Its versatility allows a quick and easy installation even in areas with only seasonal use permits.
Dolcevita provides a recirculation and filtration system that allows the highest hygiene and purity of water.
The Dolcevita Diva LTI version with its linear and modern design is even more functional thanks to the integrated technical room.

Panels

Dolcevita Diva LTI with its unique finish integrating panel and edge in one piece has a clean, modern design.
A distinctive feature of Dolcevita, the panels make it a uniquely designed product.
The panelling consists of a painted aluminium structure onto which a synthetic polypropylene fibre obtained by extrusion is woven by hand.
The craftsmanship gives each pool a unique appearance, differentiating it on the market.
This durable material is particularly resistant to various atmospheric agents and has been tested for UV resistance for an exposure of over 3000 hours.
Resistance to wide temperature variations is also excellent. Maintenance is easy as well as cleaning, to be done with neutral non-aggressive detergents.

Woven, handmade

Integrated technical room (LTI)

The special feature of the Dolcevita Diva LTI version is the technical room with an access door integrated in the header, ideal for positioning the filtration system and accessories.
The access door to the technical room is fitted with a security key.
The technical room cover for safety is not load-bearing and cannot be walked on.

Integrated technical room - access door

White Led spots

Each Dolcevita pool includes the standard supply of one or two white LED spotlights from the Laghetto line (depending on the size chosen) already positioned on the liner that give to the pools impressive light effects, day and night. These spotlights combine high-performance light output with low power consumption (less than 8 W) and great durability.
Each spotlight is powered at 12V and comes complete with its transformer to be positioned at a distance of 3.5m from the pool.

Dolcevita with spotlight on, night image

Ladder

Diva and Diva LTI versions have a dedicated ladder made of AISI316 stainless steel (43 mm tube), stainless steel steps with non-slip plastic insert and an upper step in composite wood.
A plexiglass safety kit is available on these versions to prevent uncorret children behaviors.

Luxury stainless steel ladder

Structure

The structure of Dolcevita, specifically studied and designed by Laghetto’s technical offices, is made of Magnelis steel with a powder coating (ZMSV-TEC technology).
This special treatment allows greater resistance against corrosion.
In general, the quality of the materials used guarantees constructive and operational reliability over time.
The trellis foot and all hardware are made of stainless steel.
In detail:
TRELLIS PILLARS
Zinc magnesium steel powder coated structure with stainless steel AISI304 piece of support.
METAL STRUT
Zinc magnesium steel powder coated.
NUTS AND BOLTS
A2 stainless steel.

ZMSV-TEC structure

Basement for direct assembly on the ground (Optional)

Thanks to the galvanised steel basement kit painted with powders, it is possible to install the pool directly on the ground, without concrete slab.
It is possible to issue a mobility certificate in which is declared that the pool is easy to be removed, using it just for a seasonal purpose.

Dolcevita, assembly without concrete

Liner

Dolcevita pool liners are made from 1000 g/m² coated Trevira fabric, an exclusive Piscine Laghetto product.
The liner, a highly tensile-resistant membrane, is subsequently treated anti-UV thanks to the use of special additives that exponentially limit the ageing of the material. The Dolcevita liner is tested to withstand the most extreme tensile tests (430 kg every 5 cm).
Piscine Laghetto’s vast experience in the production and processing of pool liners it’s a synonym of absolute quality and reliability.
Almost 50 years of research, development and close collaboration with carefully selected fabric suppliers have led to the formulation of sheets that are structurally and chemically specific for the swimming pool sector.
The welding machines, the most important part of the production department, are specifically designed and manufactured to meet the company’s technological production requirements.
Each liner is therefore specifically welded to get the maximum resistance to various stresses, giving Laghetto products the quality and efficiency that distinguish and differentiate them from the rest of the market.

Dolcevita – Liner assembly detail

Filtration

As part of the Fluidra Group, one of the world’s leading suppliers of swimming pool equipment, Piscine Laghetto takes advantage of the parent company’s experience to equip its pools with filtration and purification systems of undisputed construction quality and top market performance.
Aware of the importance of water quality Dolcevita’s filtration systems are adequately dimensioned to guarantee maximum cleanliness and hygiene.
Two types of filtration are available: sand and cartridge.

Cartridge filtration

Skimmer

The Piscine Laghetto skimmer is fixed to the pool wall, it has a floating head and works by skimming over the water, thus guaranteeing a high degree of constant cleanliness over time.
Equipped with a pre-filter basket, its 360-degree draught allows the best possible cleaning of the pool with superior performance to wall-mounted skimmers.
The excursion of the floating head in height allows great flexibility in filling the pool, preventing it from drawing air and blocking the filtration system pump. It is also equipped with a series of anti-trapping and anti-sucking devices for maximum safety of all bathers.

Floating Laghetto Skimmer

Countercurrent swimming kit (Optional)

This accessory is available for Dolcevita Diva and Diva LTI models only.
(just for pools with width of 3/4 meters)The counter current kit has been specifically created for Piscine Laghetto.It is easy to install and allows swimming even in pool with small dimensions.The counter current kit is composed by: no. 2 pumps 1560W (max-flow rate 36m3/h, head 12,8m), suction fittings with protective grid, no. 2 NCC nozzles with specific flanges to install it on the Dolcevita liners.As per safety regulation, fittings and piping have to be positioned 3.5m away from pool.The kit includes the pneumatic button for switching on and a specific switchboard to control and regulate the pumps timing.

Swimming against the current

7-jet hydromassage kit (Optional)

Available for Dolcevita Rattan, Picnic, Diva and Diva LTI models (for pool widths of 3 or 4 m).
It has been developed to meet the increasing demand for wellness.
The counter current kit is composed of: no. 2 pumps of 900W (max flow rate 18m³/h, head13.5m), no. 2 suctions fittings with protective grid, no.7 counter current nozzles with specific flanges to install it on Dolcevita liners.
As per safety regulation, fitting and piping have to be positioned 3.5m away from the pool.
The kit includes the pneumatic button for switching on and a specific switchboard to controll and regulate the pumps timing.

7-jet whirlpool kit

Winter Pool Cover (Optional)

The pool winter cover “Light System Plus” (in green/black colors) is equipped with elastic cords rod that allow to close hermetically the pool when not in use. This accessory, jointly with correct chemical products, preserves the water status during winter period.

Winter pool cover - detail

Summer pool cover (Optional)

The isothermal cover reduces the day/night heat exchange and helps to maintain the water temperature. It can also be left floating on the water during the day, because its fabric allows sunlight to pass through.
Isothermal cover for Dolcevita is edged for a better finish.

Isothermal summer pool cover
Dolcevita Diva LTI - Cleaning tips

Synthetic fibre panels can be dusted with a soft cloth or a soft bristle brush. For more thorough cleaning, we recommend using a microfibre cloth soaked in neutral liquid soap. Then rinse with a jet of water or a high-pressure cleaner (moderate jet at low pressure).

Clean stainless steel parts with tap water, or, if small oxidation stains are observed, clean with non-abrasive metal, or nitric acid diluted 10-15%. In both cases, rinse with fresh water and dry thoroughly with a cotton cloth.

Dirt that forms on the water line of the pool liner can be cleaned with a liquid degreaser, a pool-specific product that does not alter the chemical values of the water: chlorine and pH levels.

Dolcevita Diva LTI - Tips for water treatment

Where possible, the pool should be filled with clean water from the aqueduct or from a well equipped with a filter.

Chlorine products should always be introduced into the pool through the floating head of the skimmer with the pump running, to avoid concentrated doses of product coming into contact with the walls or bottom of the pool.

The ideal characteristics for hygienic and comfortable use of the pool are: chlorine values greater than 1 PPM, pH values between 7.2 and 7.4 PPM.

Regular water analysis is useful to know the state of the water and to detect any ongoing problems in good time, in order to restore ideal values through the use of suitable treatments to keep the water healthy.

It is worth remembering that if you need to shut down the filtration system for a fairly long period of time, it is a good idea to remove any chlorine residues not yet dissolved from the filters/skimmers.

The ideal winter closure of the pool should be done when the water temperature falls below 20°C, while the opening should be done before the water temperature exceeds 20°C.

  • MODEL DOLCEVITA DIVA LTI
  • PRODUCT TYPE Pool with self-standing structure
  • INSTALLATION Above-ground
  • SIZES 3 x 5 - 3 x 6 - 3 x 7 - 4 x 8 - 4 x 9 (water’s surface area)
  • EXTERIOR Integral external facing in hand-woven synthetic fibre over a painted aluminium frame
  • EXTERIOR COLOUR Laghetto White - Grey
  • STRUCTURE Structure in zinc-magnesium steel and parts in stainless steel. ZMSV-TEC technology
  • POOL LINER Polyester and highly resistant polymer fibres
  • POOL LINER COLOUR White, Beige
  • SYSTEMS Sand or Cartridge filtration
  • EQUIPMENT Pool, facing in woven synthetic fibre, panelling with integrated border, integrated technical compartment with access door, filtration, LED light, pool vacuum cleaner, over-full system, stainless steel ladder
  • OPTIONS Winter pool cover, summer cover, counter-current swimming kit, 7-jet hydro-massage corner, base for ground assembly
  • EXTENDED WARRANTY 5 years (structure and liner) - 2 years (other parts and accessories)
  • USE Product for private/residential use only
MODEL WATER’S SURFACE AREA (m) OVERALL DIMENSIONS (m) WATER HEIGHT (m) WATER HEIGHT (m) VOLUME (mc)
35 3 x 5 3,4 x 6,1 1,2 1,3 18
36 3 x 6 3,4 x 7,1 1,2 1,3 21,6
37 3 x 7 3,4 x 8,1 1,2 1,3 25,2
48 4 x 8 4,4 x 9,1 1,2 1,3 38,4
49 4 x 9 4,4 x 10,10 1,2 1,3 43,2
